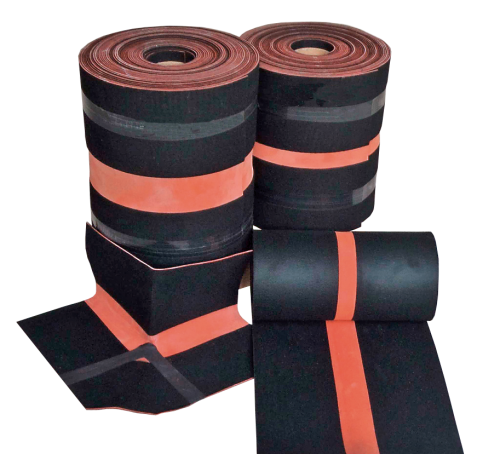

SOPRAJOINT PLUS

SOPRAJOINT PLUS

Waterproofing monolithic expansion joint specifically designed to ensure complete waterproofing at expansion joints of buildings and civil engineering works while adapting to simultaneous movements in the three axis (horizontal, vertical and shear).


Benefits

  • Superior resistance to shear movements
  • Several installation methods for a single product
  • Exceptional tear and elongation strengths

Properties

Function

Waterproofing

Product roles

Expansion Joint

Application method

  • Heat-welded
  • Laid

Thickness

2.5 mm

Packaging

Roll

Products

Products

Product code

Width

SOPRAJOINT PLUS 20

Product code

21894

Width

Total width : 355 mm (14 in) Core width : 35 mm (1.4 in) Flanges width : 160 mm (6.3 in) each

SOPRAJOINT PLUS 40

Product code

21895

Width

Total width : 390 mm (15.4 in) Core width : 70 mm (2.8 in) Flanges width : 160 mm (6.3 in) each

SOPRAJOINT PLUS 75

Product code

22133

Width

Total width : 435 mm (17.1 in) Core width : 115 mm (4.5 in) Flanges width : 160 mm (6.3 in) each

SOPRAJOINT PLUS 125

Product code

22134

Width

Total width : 560 mm (22 in) Core width : 250 mm (9.4 in) Flanges width : 160 mm (6.3 in) each
